The EMI Filter Characteristics and Applications
Date: 2023-02-27    View: 344

Please view following the characteristics and Applications about our EMI filters

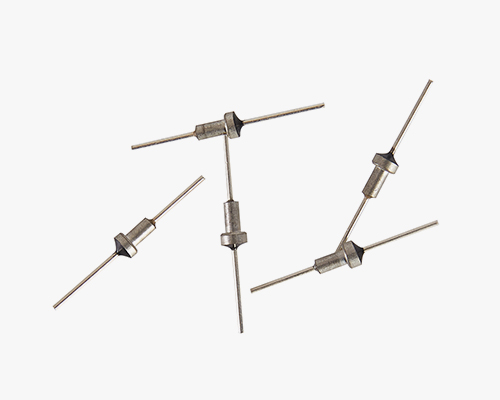

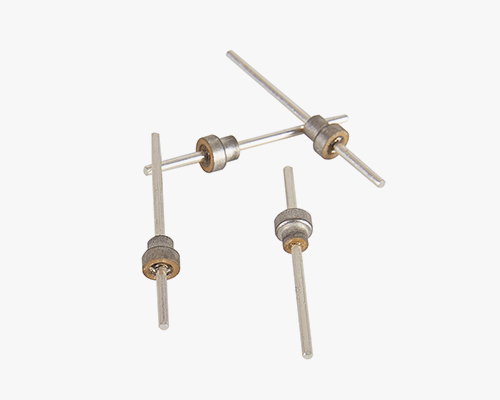

1) Soldered EMI Filter

Welded EMI filter is the most ideal product for small installation space.

Application: mainly used for filtering signal, data line and AC power line, telecommunication equipment, transmission equipment, microwave filter, industrial control machine, composite circuit filter assembly etc.

Small Size: the effective use of space.

Rated Voltage: up to 1000VDC

A variety of Circuit Structures: C type, Pi type, L type circuit can be provided.

High-temperature Structure: it can prevent the backflow during the installation.

Certification: Filters available for MIL-F-15733 QPL and MIL-C-11015 (CK99) certification.

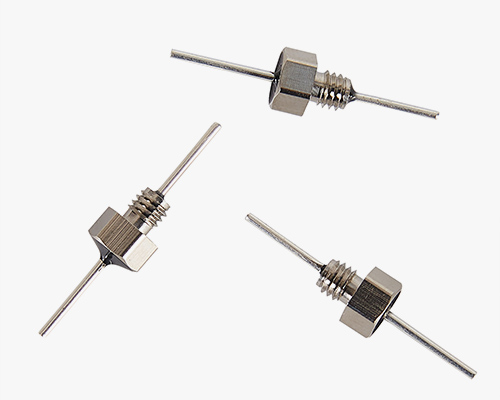

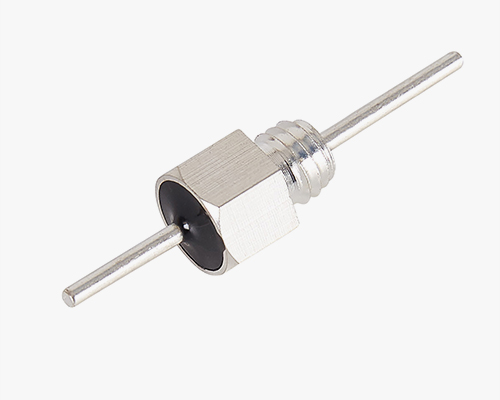

2) Resin Sealing Thread-type EMI Filter

The resin seal bolt EMI filter can be easily installed to the through hole position with the fitted nuts and pads.

Both ends of the solid enclosure provide good environmental protection.

Application: It is mainly used for signal, data line, DC power line filtering; micro extrusion installation or screw assembly is an ideal choice, suitable for microwave and other high frequency applications.

Voltage: reach 2500VDC / 250VAC

Certification: available for MIL-F-15733

Circuit Structure: C, L, Pi



3) High-current and High-voltage Resin Sealing EMI Filter

Application: high current filter is mainly used in high flow switching power supply and DC charging system.

High voltage filter is mainly used in high voltage power supply, solid bolt structure is easy to install.

Features: High current up to 100 Amps (customizable for special requirements)

Voltage: up to 3000VDC and 2500VAC (customizable on special requirements)

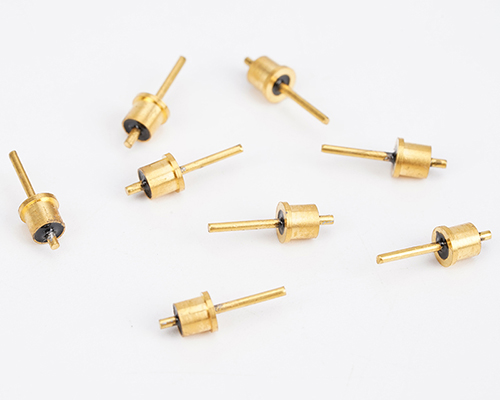

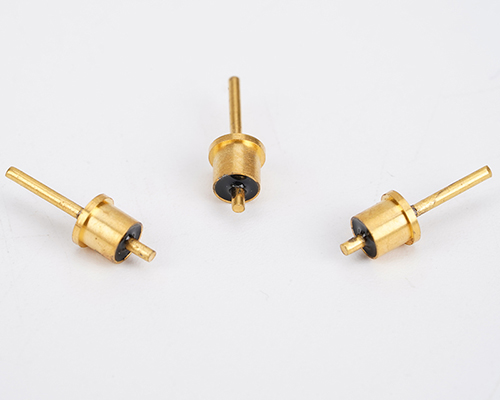

4. Glass seal and High-performance EMI Filter

This series of filters are glass sealed and have excellent EMI filter performance. For those that still require high reliability filtering in harsh environments, this product is the best choice for broadband high performance EMI filtering from 10 KHz to greater than 10GHz, glass sealing series highly moisture, corrosion, and other harsh environments that may be encountered in military applications.

Application: power supply, signal lines, rocket ignition device, aircraft, military communications, medical equipment, multi-stage filtering.

Optimization Design: multiple sizes and C, L and Pi circuits for choice, instantaneous suppression Pi, T, & amp; TT circuit optional.

Reliability: Made per MIL-F-15733 and MIL-F-28861 and meet QPL requirements. Based on MIL-F-28861, space application "S" level

FED / MIL Certification: meets the MIL-F-15733 and MIL-F-28861 standards

Features: Insertion loss range of 0.01 MHz-10GHz

Capacitance and temperature characteristics: 1 pF-10 μ F; NPO, Y5P, X7R, Y5U, Z5U, etc

Temperature range: -55℃ ~ - + 125℃, -40℃ ~ - + 85℃, -20℃ ~ - + 85℃

Maximum voltage: 3000VDC; 2500VAC; (special requirements)

Maximum current: 100A (customizable for special requirements)
