Features
• Capacitance Range 0.1 pF to 10000 pF
• High Q
• High Power
• Low Noise
• Low ESR/ESL
• High POWER Self-Resonance
• Ultra-Stable Performance

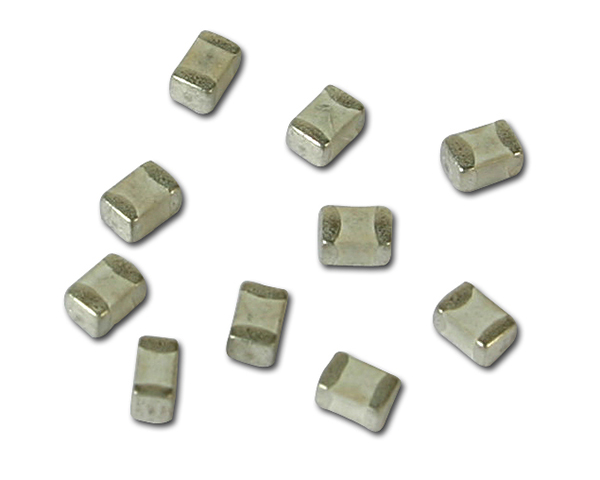

KEC70 Series High Q E-Catalog
| Series Name | Size Footprint in.(mm) | Cap. Value Range (pF) |
Working Voltage (WVDC) Max. |
TCC (ppm/°C) (-55°C to +125°C) |
|
| KEC70A Series | .055x.055 (1.40x1.40) | 0.1 to 1000 | 300 | (NPO) 0±30 |
|
| KEC70B Series | .110x.110 (2.79x2.79) | 0.1 to 10000 | 1500 | (NPO) 0±30 |
|
| KEC70C Series | .225x.250 (5.72x6.35) | 0.5 to 2700 | 3600 | (NPO) 0±30 |
|
| KEC70D Series | .080x.050 (2.03x1.27) | 0.1 to 150 | 250 | 0±30 |
|
| KEC70E Series | .380x.380 (9.65x9.65) | 0.5 to 5100 | 7200 | (NPO) 0±30 |
|
| KEC70H Series | .040x.020 (1.20x0.51) | 0.1 to 33 | 200 | 0±30 |
|
| KEC70P Series | .060x.030 (1.52x0.81) | 0.1 to 68 | 250 | 0±30 |
|
| KEC70R Series | .070x.100 (1.78x2.54) | 1.0 to 100 | 500 | 0±30 |
|
