16-WayHome > Products > RF Power Dividers

Features

• Low insertion Loss, High Isolation
• Excellent Amplitude Balance &Phase Balance
• Frequency Covers from DC-18GHz

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number Ways Freq.Range (GHz) Insertion Loss (dB) Max. Isolation (dB) Min. VSWR Max. Amp. Balance (dB) Max. Phase Balance (Deg.) Max. Input Power (W) Connector PDF
KTPD-M0825-16-SMAF 16 0.8-2.5 1.50  22 1.40 : 1 ±0.50 ±5° 30 SMA-F
KTPD-M0730-16-SMAF 16 0.7-3 2.00  18 1.50 : 1 ±0.80 ±5° 30 SMA-F
KTPD-M0560-16-SMAF 16 0.5-6 3.20  18 1.80 : 1 ±0.60 ±6° 30 SMA-F
KTPD-M0580-16-SMAF 16 0.5-8 3.80  16 1.80 : 1 ±0.80 ±8° 30 SMA-F
KTPD-M2040-16-SMAF 16 2-4 1.60  18 1.50 : 1 ±0.50 ±6° 30 SMA-F
KTPD-M2080-16-SMAF 16 2-8 2.00  18 1.80 : 1 ±0.50 ±8° 30 SMA-F
KTPD-M60180-16-SMAF 16 6-18 1.80  16 1.80 : 1 ±0.50 ±10° 30 SMA-F

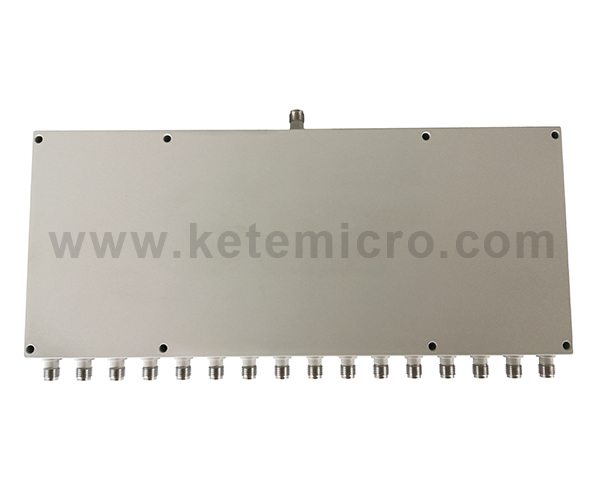

Our 16 ways power divider can split an input signal into 16 equal and identical signals. It can also be used as a power combiner, where the common port is the output and the 16 equal power ports are used as the inputs. The16 way Power dividers are widely used in wireless systems to divide power across equally across the system. Kete’s 16 way power dividers are available in narrowband and broadband configurations, covering frequencies from DC-18GHz. They are designed to handle from 10 to 20 watts input power in a 50-ohm transmission system.

If you are interested in these products, please you fill out the form below to get in contact with our Sales team
