10-WayHome > Products > RF Power Dividers
Features
• Low insertion Loss, High Isolation
• Awesome Amplitude Balance
• Excellent Phase Balance
- Product Guide
- Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.
Part Number
|
Ways
|
Freq.Range
(GHz)
|
Insertion Loss (dB) Max.
|
Isolation (dB) Min.
|
VSWR Max.
|
Amp. Balance (dB) Max.
|
Phase Balance (Deg.) Max.
|
Input Power (W)
|
Connector
|
PDF
|
KTPD-M0530-10-SMAF
|
10
|
0.5-3
|
2.00
|
17
|
1.80 : 1
|
±1.00
|
±10°
|
20
|
SMA-F
|
|
KTPD-M0560-10-SMAF
|
10
|
0.5-6
|
3.00
|
15
|
2.00 : 1
|
±1.00
|
±10°
|
20
|
SMA-F
|
|
KTPD-M0842-10-SMAF
|
10
|
0.8-4.2
|
2.50
|
18
|
1.70 : 1
|
±1.00
|
±10°
|
20
|
SMA-F
|
|

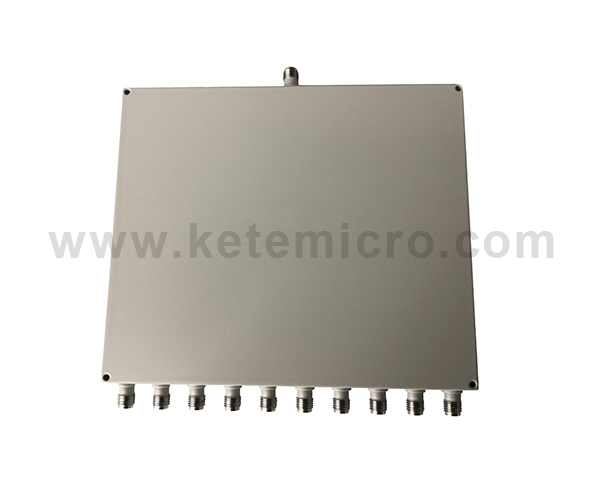

Kete’s 10 ways power splitter can divide the input signal into 10 equal and identical signals. It can also be used as a power combiner where the common port is output and 10 equal power ports are used as input. 10-way power splitters are widely used in wireless systems to distribute power evenly throughout the system. Our 10-way power divider is available in narrowband and wideband configurations, covering frequencies from DC-6GHz. They are designed to handle 20 to 30 watts of input power into a 50 ohm transmission system.
