Features

• Pass Band: 1-24GHz
• Low passband insertion loss and high rejection
• Broad, high frequency pass and stopbands
• Small size and excellent performances
• Cavity, LC structures, lumped-element, microstrip are avaliable according to different applications

  • Product Guide
  • Product Description
Here just list out part of catalogs as follows for reference. Customized products are available, please consult with Kete.

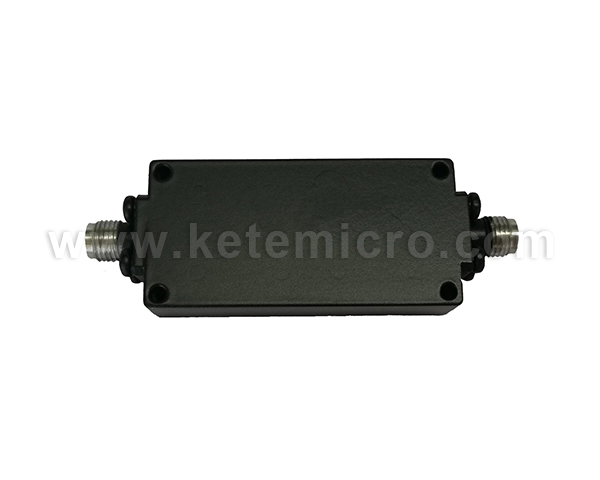

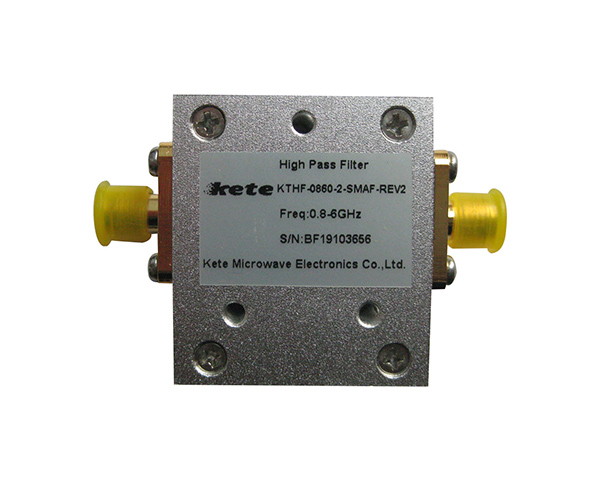

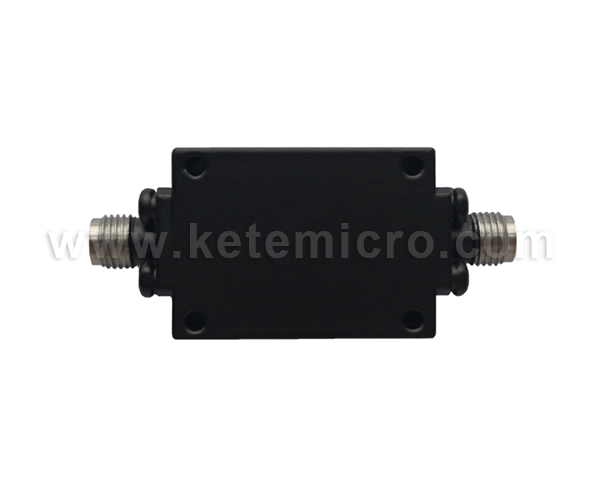

Part Number Pass Band Rejection  Min. Insertion Loss  Max. VSWR  Max.
KTF-14000-HP 1-18GHz 60dB@DC-0.8GHz 2.0dB 2 : 1
KTF-5050-HP 1.1-9.0GHz 60dB@DC-9.46GHz 2.0dB 2 : 1
KTF-7100-HP 1.2-13GHz 40dB@0.96-1.01GHz,
50dB@DC-0.96GHz
2.0dB 2 : 1
KTF-7750-HP 1.5-14GHz 50dB@DC-1.17GHz 1.5dB 1.5 : 1
KTF-7175-HP 1.6-12.75GHz 40dB@DC-1.1GHz 1.5dB 1.8 : 1
KTF-10000-HP 2-18GHz 45dB@DC-1.8GHz 2.0dB 1.8 : 1
KTF-1004-HP 2.4835-1.8GHz 60dB@DC-1.664GHz 2.0dB 2 : 1
KTF-10250-HP 2.5-18GHz 40dB@DC-2.0GHz 1.5dB 1.6 : 1
KTF-5075-HP 2.65-7.5GHz 70dB@DC-2.45GHz 1.8dB 2 : 1
KTF-10391-HP 2.7835-18GHz 70dB@DC-2.4835GHz 1.8dB 2 : 1
KTF-7875-HP 3-12.75GHz 40dB@DC-2.7GHz 1.5dB 2 : 1
KTF-10500-HP 3-18GHz 40dB@DC-2.7GHz 2.0dB 1.6 : 1
KTF-10550-HP 3.1-18GHz 40dB@DC-2.48GHz 1.5dB 1.5 : 1
KTF-11000-HP 4-18GHz 45dB@DC-3.6GHz 2.0dB 1.8 : 1
KTF-8475-HP 4.2-12.75GHz 40dB@DC-3.8GHz 2.0dB 1.7 : 1
KTF-11246-HP 4.492-18GHz 40dB@DC-4.2GHz 2.0dB 2 : 1
KTF-13500-HP 5-22GHz 60dB@DC-4.48GHz 2.0dB 1.7 : 1
KTF-11925-HP 5.85-18GHz 60dB@DC-3.9195GHz 2.0dB 2 : 1
KTF-12000-HP 6-18GHz 50dB@DC-0.61GHz, 25dB@2.5GHz 1.0dB 2 : 1
KTF-15000-HP 6-24GHz 60dB@DC-5.4GHz 2.0dB 1.8 : 1
KTF-12250-HP 6.5-18GHz 40dB@5.85GHz, 62dB@DC-5.59GHz 2.0dB 1.8 : 1
KTF-12500-HP 7-18GHz 40dB@DC-6.5GHz 2.0dB 2 : 1
KTF-13000-HP 8-18GHz 50dB@DC-6.8GHz 2.0dB 2 : 1
KTF-16500-HP 8-25GHz 60dB@DC-7.25GHz 2.0dB 1.8 : 1
KTF-12700-HP 8.4-17GHz 85dB@8.025-8.35GHz 5.0dB 1.5 : 1
KTF-17500-HP 11-24GHz 60dB@DC-6.0GHz, 40dB@6.0-9.0GHz 2.5dB 1.8 : 1
KTF-13350-HP 11.7-15GHz 15dB@DC-9.8GHz 1.0dB 1.3 : 1
High Pass Filter is the exact opposite to the low pass filter circuit as the two components have been interchanged with the filters output signal now being taken from across the resistor. Where as the low pass filter only allowed signals to pass below its cut-off frequency point, ƒc, the passive high pass filter circuit as its name implies, only passes signals above the selected cut-off point, ƒc eliminating any low frequency signals from the waveform.

Applications of the High Pass Filter
• High Pass filters are used to reject any low-frequency components for the system
• Highpass Filters are used in radio receivers and satellite technology to attenuate low-frequency noise
• High Pass Filters are used in harmonics measurements to avoid fundamental signals from the source
• RF laboratories use highpass filters to build various test setups which require low-frequency isolation and only allow high-frequency harmonics range
