Features
• Capacitance Range 0.1 pF to 1000 pF
• Lowest ESR
• Highest Working Voltage
• High Self-resonance Frequencies ( to 25GHz)

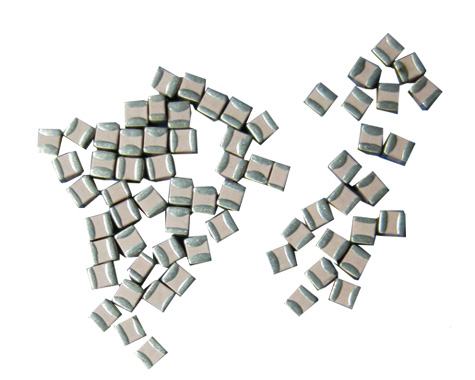

KEC75 Series E-Catalog
| Series Name | Size Footprint in. (mm) | Cap. Value Range (pF) |
Working Voltage (WVDC) Max. |
TCC(ppm/°C) (-55°C to +125°C) |
|
| KEC75A Series | .055x.055 (1.4x1.4) | 0.1 to 1000 | 300 | 0 ±30 |
|
| KEC75B Series | .110x.110 (2.79x2.79) | 0.2 to 1000 | 1000 | 0 ±30 |
|
| KEC75D Series | .080x.050 (2.00x1.20) | 0.1 to 220 | 250 | 0 ±30 |
|
| KEC75H Series | .040x.020 (1.02x0.51) | 0.1 to 33 | 250 | 0 ±30 |
|
| KEC75N Series | .024x.012 (0.60x0.30) | 0.1 to 100 | 50 | 0 ±30 |
|
| KEC75P Series | .060x.030 (1.60x0.80) | 0.1 to 100 | 250 | 0 ±30 |
|
| KEC75R Series | .070x.080 (1.78x2.03) | 1.0 to 100 | 500 | 0 ±30 |
|
