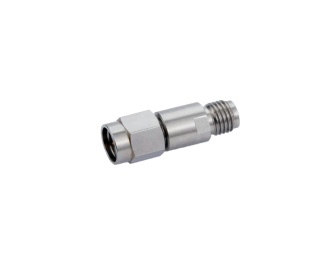

2.92 ConnectorHome > Products > Coaxial Fixed Attenuators


• Nominal Impedance: 50 Ω
• Power Rating: 2W
• Frequency Range: DC-40GHz
• Attenuation Value: 0.5-30dB
• Operating Temperature: -55℃ to +125℃
• Connector Type: 2.92 (Male/Female)

2.92 Connector E-Catalog

  • Product Guide
  • Product Description
Part Number Rated Power(W) Frequency Rang
Attenuation Value (dB) VSWR Dimensions LxWxH (mm) PDF
CA2-XX-2.92-40 2 DC-40 0.5 -15,20,30 1.30 :1@DC-31.5GHz
1.35 :1@31.5-40GHz
Coaxial fixed attenuators are used in absorbing energy of transmission line, expanding power range and controlling power level, they are also used in accurately measuring power or spectrum of RF microwave transmitters accompany with small power meter, comprehensive tester or spectrum analyzer. Kete coaxial fixed attenuators feature wide frequency band, low VSWR, flatness attenuation value etc.

If you are interested in these products, please you fill out the form below to get in contact with our Sales team
