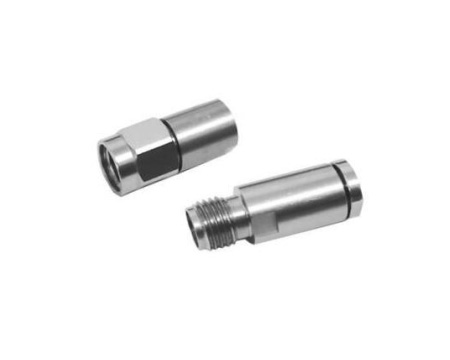

2.92 ConnectorHome > Products > Coaxial Fixed Terminations


• Nominal Impedance: 50 Ω
• Power Rating: 2-10W
• Frequency Range: DC-40GHz
• Operating Temperature: -55℃ to +125℃
• Connector Type: 2.92 Male or 2.92 Female

2.92 Connector E-Catalog

  • Product Guide
  • Product Description
Part Number Rated Power(W) Frequency Rang
VSWR (Max.) Connector Type Dimensions LxWxH (mm) PDF
CT50-2-2.92-40 2 DC-40 1.20:1 @DC-20GHz
1.25:1 @20-31.5GHz
1.35:1 @31.5-40GHz
2.92 Male or 2.92 Female Φ7.5 x 17.3
Φ7.5 x 19
CT50-10-2.92-40 10 DC-40 1.35:1 @DC-40GHz 2.92 Male or 2.92 Female Φ40.5 x 29.8
Coaxial fixed terminations absorb RF & microwave energy and are commonly used as dummy loads of antenna and transmitter. They are also used as match ports in many multiport microwave device such as circulators and directional couplers to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.
